Pump head
Your location:home page > Products > Pump head > Pump head
  400-0602-365

DMD15 series
Flow range:≤1760ml/min
National Hotline:400-0602-365

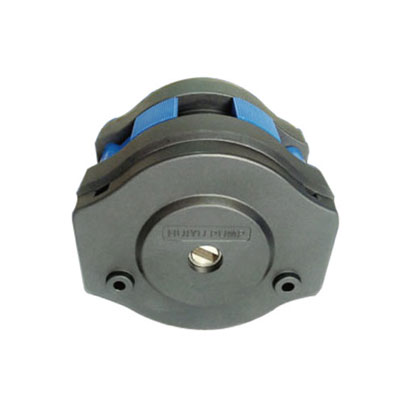

Introduction to Pump Head

Used in high-precision distribution and small flow filling

Phase compensation design

The special tube assembly effectively reduces the pulsation and improves the filling accuracy. Can be adapted to 25# tube

Max flow rate:1760ml/min

1.Low pulse ,high-presion

2.Specialized in high-precision dispensing and small flow rate filling

3.PPS housing ,can stand acid ,alkali,and orangic solvent

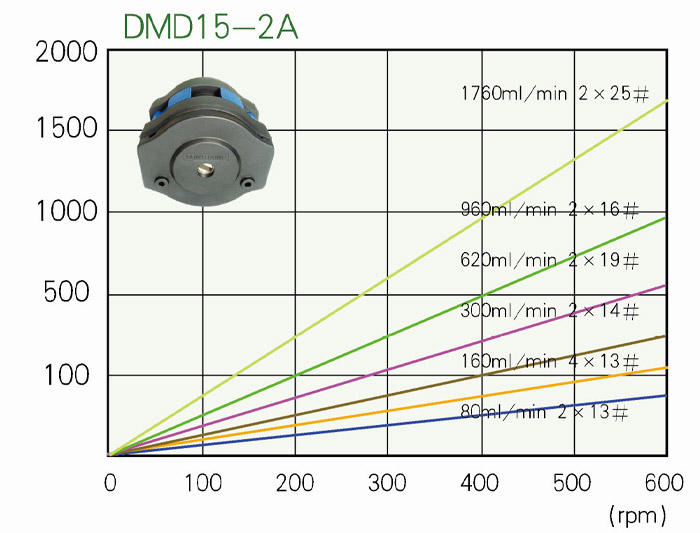

Flow curve

Dimensions

Technical Data Sheet

Model   Wheel material Number of rollers Shell material Range of rotation Applicable hose specifications Reference flow (ml/min) Repeatability error

Weight (kg)

DMD15-1A SUS304 6 Shell: aluminum alloy
Upper pressure block: POM
≤600 2×13# ≤80 ≤±1% 0.9
2×13# ≤160
2×14# ≤300
DMD15-2A PPS 2×19# ≤620 0.5
2×16# ≤960
2×25# ≤1760
